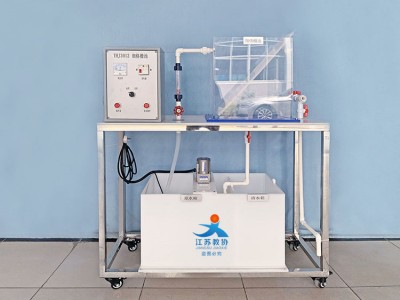

標題：教協 JX-J1608 細格柵池
內容：

一.實驗?zāi)康?
觀察細格柵的作用：格柵在污水處理的作用原理是物理攔截。它分粗格柵、細格柵，對廢水中的漂浮物、較大懸浮物進行攔截處理。細格柵主要去除水中一些細小的顆粒及懸浮物。
二.技術指標
1.處理水量：0.5m3/h。
2.工作電源：AC220V±10%、50Hz，單相三線制，功率200W，安全保護：具有接地保護、漏電保護、過流保護。
3.電源線路及控制線的安裝：須使用環保阻燃電氣配線槽，規范整理符合國家標準，具有絕緣、防弧、阻燃自熄等特點，布線整齊，安裝可靠，便于查找、維修和調換線路。
4.裝置外形尺寸：1100mm×450mm×1400mm。
三.主要配置及參數
1.格柵池1只：透明有機玻璃材質、厚度10mm。細格柵1套：格柵間距2mm。
2.原水箱和清水箱1只：白色PP板、厚度10mm，水箱水箱底板上安裝有放空閥，方便將水排凈。
3.攪拌電機1臺：功率25W、轉速90rpm、不銹鋼攪拌槳1套。
4.提升泵1臺。
5.流量測量與調節：轉子流量計，污水流量（量程100～1000L/h）。
6.304不銹鋼臺面、拉絲銀雙色板標牌標注主要組成單元，管路性質和水流方向標識，便于學生了解設備。
7.電源控制系統：雙面亞光密紋噴塑電控箱1只、漏電保護器（德力西）、電壓表、帶燈自鎖按鈕開關（正泰）、線槽等組成，控制箱面板采用鋁質凹字技術制作。
8.公元ERA配套連接管道和閥門、彎頭。
9.不銹鋼框架實驗臺（30*30mm不銹鋼方管、配腳輪均為萬向輪帶禁錮腳）等組成。
